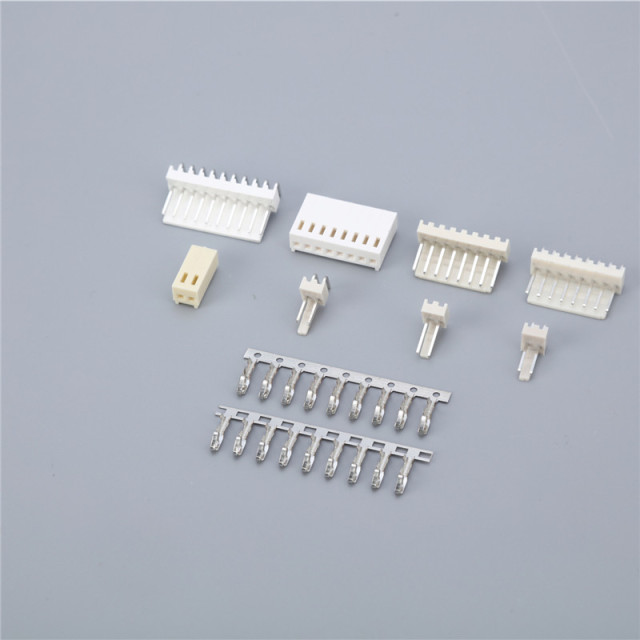

【SPECIFICATIONS】
Poles: 2~24
Applicable wires: AWG28#~22#
Applicable PC board thickness; 1.6mm
Temperature range: -259C~85C
Voltage rating: 250V.AC/DC
Current rating: 3A
Contact resistance:≤0.029
Insulation resistance:≥1000MS
Withstand voltage; 1000V.AC/1min
【MATERIAL】
Housing: PA66 UL94V-2(0)
Wafer: PA66 UL94V-2(0)
Terminal; Phos. bronze Tin/plated
