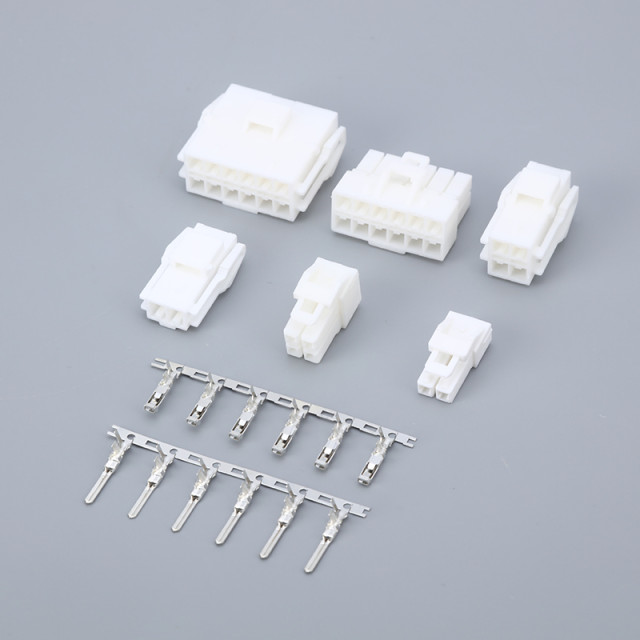

【SPECIFICATIONS】
Poles:1、2、3、4.6、8、9、12、15.16
Applicable wires; AWG28#~ 18#
Applicable PC board thickness: 0.7~2.0mm
Temperature range: -25C~85C
Voltage rating; 300V.AC/DC
Current rating: 10Amax
Contact resistance:≤0.015Q
Insulation resistance:≥1000MS
Withstand voltage: 1500V.AC/1min
【MATERIAL】
Plug housing:PA66 UL94V-2(0)
Receptacle housing: PA66 UL94V-2(0)
Retainer: PA66 UL94V-2(0)
Terminal: Phos.bronze Tin/plated )
Brass Tin/plated
